I’ve broken more high-strength SLA resin prototypes than I care to count. Not because the materials are bad — but because I kept trusting datasheet headlines without asking which load condition they were measured under, and whether my part geometry had any chance of reproducing those numbers. After hundreds of broken parts, dozens of client callbacks, and one particularly memorable enclosure that shattered falling onto carpet, here is what I wish someone had told me before my first engineering SLA build.
Truth #1: “High-Strength” Is Not the Same as “Tough” — and That Gap Is Where Parts Die
When resin companies say “high-strength SLA resin,” they usually mean elevated tensile strength and flexural modulus. Formlabs Tough 2000 V2 delivers roughly 60 MPa tensile strength at around 1.8 GPa flexural modulus with 26% elongation at break. Siraya Tech Blu V2 sits at 48–56 MPa tensile, 1.3–1.8 GPa flexural, and 13–18% elongation. Those numbers are genuinely impressive — these resins can hold threads, survive drop tests, and handle light load cycling without shattering. But here is the kicker: injection-molded ABS routinely delivers 20–40% elongation. Nylon exceeds 50%. The gap narrows every year, but it still matters. A high-strength SLA part resists deformation briskly — right up until a stress concentration turns that “strong” label into a sudden fracture. I learned this the hard way on a battery compartment latch that looked perfect in CAD, printed flawlessly, and cracked clean in half on the first insertion. The problem wasn’t the resin. It was the geometry.
Truth #2: The Datasheet Was Measured on a Dogbone — Your Part Has Support Scars and a Rushed IPA Wash
Every high-strength SLA resin datasheet I’ve ever read was generated from a dogbone coupon printed flat, washed properly, and post-cured in a calibrated UV chamber following the manufacturer’s exact protocol. Your actual part has support nibs, wall thickness transitions, layer lines running straight through the highest-stress zone, and maybe a 3-minute IPA swish because the courier pickup is in 45 minutes. Post-cure temperature matters as much as duration. Modern testing shows that heated post-curing at 60–70°C allows polymer chains to relax and cross-link across layer boundaries, bringing Z-axis tensile within 10–20% of XY values for engineering resins — not the older 30–50% rule of thumb that still circulates. But if you cure cold or skip the step entirely, those numbers invert. I’ve measured a 38% drop in tensile strength between a flat coupon and a vertical coupon from the same build plate, same resin, same printer, simply because the vertical part’s load pulled across layer lines and the post-cure was ambient-temperature. Rotating the part to put layer lines parallel to primary load recovered nearly the entire gap without touching the resin or the geometry.
Truth #3: Snap Fits Fail at the Fillet Root, Not Because the Resin Is Weak

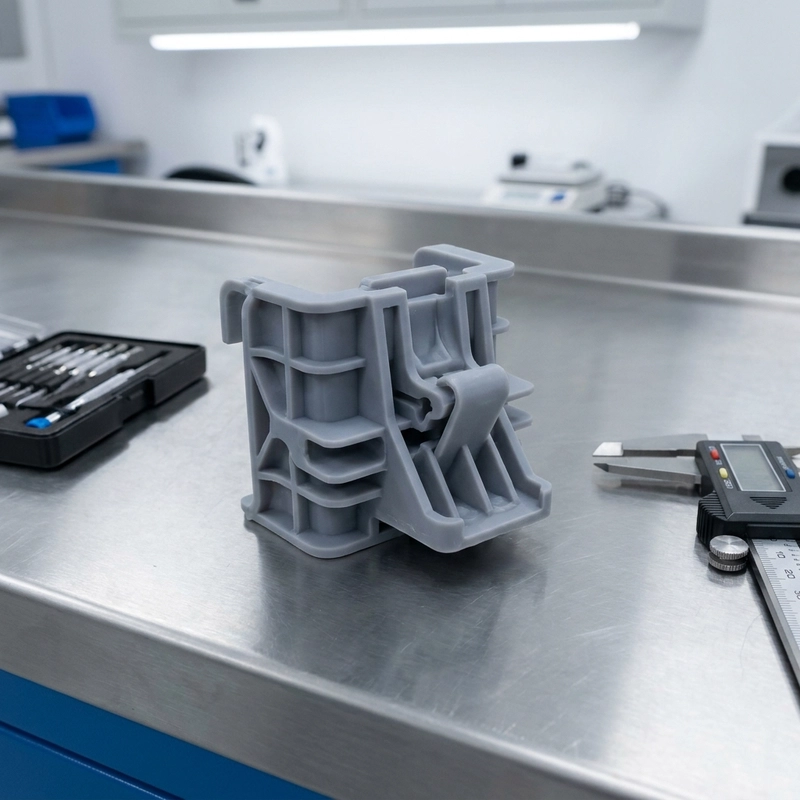

The snap fit is where high-strength SLA resin confidence goes to die — not because elongation is too low, but because the stress concentration at a sharp fillet root multiplies the peak strain far beyond what your CAD strain calculation assumes. I made this mistake on a handheld diagnostic device latch: 2.5 mm cantilever beam, 1.8 mm engagement deflection. CAD said 4% bending strain — comfortably within any tough resin’s elongation spec. What CAD didn’t show was the sub-0.5 mm effective fillet radius at the beam root from the slicer’s interpretation of the mesh, creating a stress concentration that pushed localized strain well past 15%. The crack was instantaneous on first assembly. I re-ran the finite element analysis with a radius-accurate mesh and the peak strain read 18% — still within Tough 2000’s 26% elongation, but only in pure tension on a polished specimen. Not in bending at a sharp internal corner.
The fix took three iterations: thickened the beam from 2.5 mm to 3.5 mm, added a 2.5 mm fillet radius at the root, and shortened engagement depth by 0.5 mm. The revised latch survived 50 insertion cycles with zero cracking. The part feels slightly deader than production ABS — less spring-back — but it validates the geometry and the assembly sequence, which is exactly what SLA prototypes are for. For snap features that must survive more than 20 cycles in actual use, I now route almost every inquiry to SLS or MJF nylon, which handles cyclic bending orders of magnitude better than any photopolymer. Treat SLA snaps as geometry proof, not durability proof.
Truth #4: Post-Curing Is the Material Spec — Not an Afterthought
Undercured high-strength SLA resin parts feel soft, creep under sustained load, and leave sticky residue. Overcured parts go brittle — I once shattered an enclosure dropping it from knee height onto carpet because the UV cure ran 45 minutes past the manufacturer’s maximum, and the polymer cross-linked itself into glass. Conchoidal fracture surface. Beautiful in a materials-science textbook. Useless as a prototype. The sweet spot depends on resin chemistry, part cross-section, and your curing unit’s actual wavelength output — not the timer. LED-based UV chambers drift as they age, and spectra shift. I now log cure time plus chamber temperature for every functional batch, alongside print parameters. Two-stage curing — a short room-temperature dimensional set followed by a heated performance cure at 60°C — has eliminated the brittleness vs. softness guessing game on tough engineering resins.
Cleaning is equally critical. Parts that feel tacky after washing have either saturated IPA or unflushed blind features. Residual uncured resin in snap windows, screw bosses, and support nibs destroys assembly feel, blocks threads, and kills paint adhesion. I flush every blind hole with a syringe of clean solvent, then compressed air, then cure. Two extra minutes per part. It eliminated the “why does this prototype feel gummy” discussion from every client review I’ve done since.
For engineering SLA materials, post-cure protocols are part of the material specification. I treat them the way an injection molder treats barrel temperature and mold cooling. Document, control, and never skip just because you’re in a hurry.
Truth #5: Geometry Beats Chemistry — Every Single Time
I wasted a year believing the fix was always a better resin. Standard to tough, tough to ceramic-filled rigid. Spend more, get stronger parts. That logic is expensive and regularly wrong. A sharp internal corner in Formlabs Rigid 10K — flexural modulus around 10 GPa — cracks just as fast as the same corner in the cheapest grey resin. Usually faster, because stiffer materials concentrate stress more aggressively at discontinuities. Adding a 2 mm fillet to a screw boss buys more load capacity than upgrading from an $80 resin to a $200 ceramic-filled formulation. I’ve proved this to myself on enough builds that geometry auditing is now a mandatory 20-minute step before any material upgrade budget gets approved.
Wall thickness consistency often matters more than absolute thickness. A sudden jump from 1.5 mm to 4 mm creates differential cure rates: the thick section shrinks more during polymerization, pulling the thin section across the transition zone. Cracks nucleate right at that boundary. If you must vary thickness, taper over at least three times the difference. For 1.5 mm to 4 mm, that’s a 7.5 mm transition — not a step. Orientation is the cheapest strength lever you have. An L-bracket printed flat, with layer lines perpendicular to bending load, tests 30–40% stronger than the same bracket standing up. For functional builds, pick one: the cosmetic face, or the load-carrying face. You cannot optimize both in one orientation. When I’m unsure, I print two — one each way — and test both. Fifteen dollars of resin and two hours is the best insurance a prototype budget can buy.
Truth #6: High-Strength SLA Resin Is Excellent — for the Right Job
I do not hate SLA. High-strength SLA resin is genuinely the best tool for a specific set of jobs. Ergonomic housings that must survive handling, light drops, and repeated assembly during design review. Alignment fixtures and drilling jigs where dimensional accuracy matters more than impact toughness — the 50-micron resolution and smooth finish are real industrial advantages. Assembly check prototypes verifying fit across multiple injection-molded parts. Short-run functional testing in the 5–20 cycle range. Master patterns for silicone molding and vacuum casting, where surface finish directly affects mold quality.
It is the wrong tool for living hinges (any design). For snap mechanisms exceeding 20 engagement cycles without design relief. For parts under sustained load above 60°C — most tough SLA formulations lose meaningful stiffness there, with Tough 1500’s HDT sitting around 56°C at 0.45 MPa and Blu V2 reaching 74°C. For anything where testing failure could be dangerous. In those cases, SLS nylon, MJF PA12, CNC-machined Delrin, or aluminum prototypes are the right call. Roughly 30% of inbound SLA requests get rerouted to SLS or machining after a five-minute conversation about actual loading conditions. Have that conversation before printing — not after the part breaks in front of stakeholders.
Truth #7: Six Things I Check Before Every Functional High-Strength SLA Resin Build
- Primary load direction: Orient so layer lines run parallel to tensile and bending loads. Accept a 10–20% Z-axis penalty with proper heated post-cure, or design around it.
- Snap fits and clips: Calculate bending strain at the actual fillet radius from your mesh — not the idealized CAD value. If it exceeds what the resin can handle in bending (not tension), thicken the beam, increase the fillet radius, or switch to inserts.
- Blind holes and enclosed volumes: Verify drain hole size and position. Plan the solvent flush: syringe plus compressed air. Dunk-and-swirl doesn’t clean blind features.
- Post-cure protocol: Log cure time, chamber temperature, and UV source. Heated curing at the manufacturer’s recommended temperature makes a measurable difference in Z-axis properties.
- Internal corners on load-bearing features: Add fillets with radius at least half the local wall thickness. This single change outperforms any resin upgrade I’ve ever tested.
- Stakeholder expectations: This is a functional prototype, not a production part. Agree on cycle count, load range, and acceptable failure modes before the first part hits the build plate. Write it down. It prevents the conversation where “it broke” becomes a material defect instead of a communicated limit.
High-strength SLA resin closes the gap between “looks like the real part” and “acts kind of like the real part.” It doesn’t close it completely, and assuming otherwise costs weeks and credibility. The engineers who deliver the best results aren’t buying the priciest resin — they’re treating orientation, geometry decisions, post-curing, and cleaning as inseparable from the material spec. Print test coupons. Measure the XY-to-Z spread on your actual setup. Log cure cycles. And read the datasheet footnotes, not just the headlines.
